★Printing and packaging industry：
It is suitable for manufacturers of cartons, gift boxes, color boxes and inner packaging boxes.

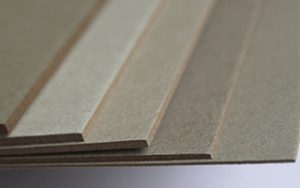

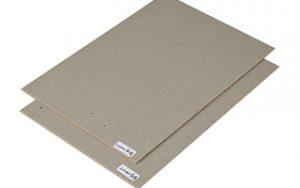

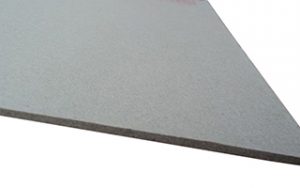

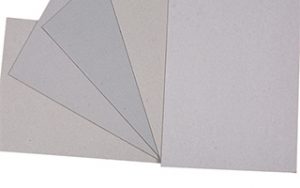

Materials that can be cut include heavy-duty 3A corrugated board, ordinary corrugated board, single-pit cardboard, multi-pit cardboard, honeycomb paperboard, gray cardboard, white cardboard, kraft paper, coated paper and other paper materials, as well as materials such as pearl cotton, foam and sponge.
♦Main technical parameters
| Model | JR-0906ZDD | JR-1410ZDD | JR-1813ZDD | JR-2516ZDD |
| Cutting range | 900 (L)*600(W) | 1400 (L)*1000 (W) | 1800(L)*1300(W) | 2500 (L)*1600(W) |
| Outline Size | 1600(L) *1150 (W) | 2100 (L)*1550(W) | 2500(L)*1850(W) | 3300 (L)*2150(W) |
| Functions | Cutting, creases, dotted lines, half-cutting, V-grooves, laser or camera positioning, safety protection | |||
| Tools | Standard equipment: vibrating knife, pressure wheel and infrared laser light, optional half-cut knife, pneumatic knife, miter knife, speaking knife, punching, pneumatic pen, industrial camera, etc | |||
| Materials | Corrugated paper, cardboard, industrial gray board, coated paper, blanket, composite materials, PVC glue board, honeycomb board, self-adhesive, EPE, EPS and other flexible materials. | |||
| Cutting Speed | Self-adjustable speed, straight cutting up to 1200mm/s (varies depending on cutting material thickness and material) | |||
| Thickness Max. | Standard machine 40mm (customized machine can be larger thickness) | |||
| Blade types | 39 degree knife: cut cardboard paper and grayboard paper within 3mm,
26 degree knife: cut corrugated paper within 5-7mm. 20 degree knife: cut corrugated paper within 7-10mm. 16 degree knife: cut corrugated paper within 10-15mm. 45/60 knives; Cutting pearl cotton foam within 5-50mm Special knife: cutting corrugated paper, cardboard, kraft paper, gray board paper, PVC glue board, self-adhesive paper, etc. within 15mm Special V-shaped knife: cutting 90 degrees -120 degrees V-shaped groove (optional) |
|||
| Pressure wheel | 3mm pressure wheel: suitable for corrugated paper within the thickness range (3-5) mm 5mm pressure wheel: suitable for corrugated paper within the thickness range (5-7) mm 7mm pressure wheel: suitable for corrugated paper within the thickness range (7-15) mm | |||
| Transmission mode | High-precision rack and pinion and belt and linear guide | |||
| equipment consists | a workbench, a control box, and a vacuum suction pump | |||
| Cutting method | The blade contacts the material for cutting | |||
| File format | Compatible with CAD, CorelDRAWs AI and other graphic editing software formats, as well as PLT formats | |||
| Control system | Servo motor and drive | |||
| Table pad | 4mm felt pad as standard (optional silicone rubber pad) | |||
| Applicable voltage | VC380V ±10%, 50HZ or VC220V±10%, or customized according to client need | |||
| Cutting accuracy | ±0.05mm | |||
| Repeatability | ±0.02mm | |||
| Motor frequency | The motor frequency of the cutting head > 12,000 times/min, which can be adjusted according to the material. | |||
| Fixed method | vacuum adsorption | |||
| Vacuum | According to the size of the model, it can choose 2.2KW, 5.5KW, 7.5KW, etc | |||
Main relative tools:
